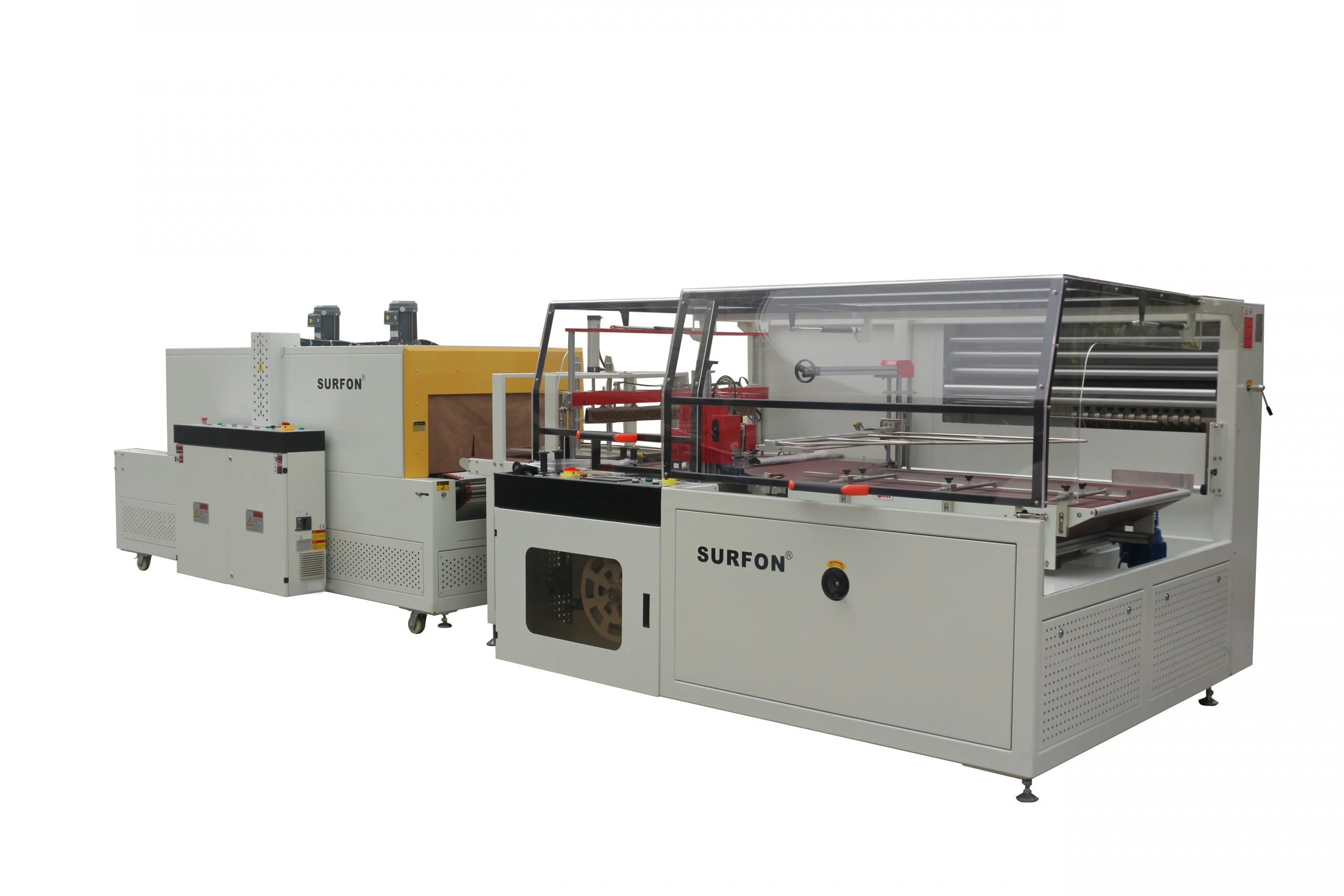

• GH-8030LH is an especial fully-auto unmanned operation side sealer by our company’s independent research and development, which is widely used in mass production assembly line with auto-feeding, conveying, sealing, shrinking in one time. It is high working efficiency and suits for the products of different height and width;
• The horizontal blade of sealing part adopts vertical driving, while the side blade uses international advanced thermostatic cutter; the sealing line is straight and strong and we can guarantee seal line in the middle of the product to achieve perfect sealing effect;
• The sealing blade equips with automatic anti-cutting protection function which effectively prevent from accidental cutting of operator’s hand or products; The machine is equipped with organic glass shield with automatic opening alarm function which greatly improves safety;
• This machine is different with common side sealing machine cause the horizontal blade is behind of side sealing part, so that it is suitable for packing high products;
• When it packs different sizes, the adjustment is very simple by rotating the hand wheel to increase the reliability;
• The machine adopts the advanced Siemens PLC programmable controller, with safety protection and alarm devices, while the sealing system can have a continuous sealing order without replacement; Maintenance is very simple;
• Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect;
• Two groups of horizontal and vertical electric eyes are easy to switch for thin or small packages which can easily complete sealing packaging operations;
• Automatic scrap winder : Using a separate motor to control which is not too loose or too tight to crack and is easy to remove the waste;
• It equips with automatic blowing function to ensure smooth feeding of the film and reduce overlap of sealing;
• Front inlet power belt conveyor and outlet no power storage roller conveyor can be selected as your demands.
• SF-13040E adopts stainless steel heating elements with automatic cooling function which greatly extended the machine’s life span more than three times. Shrinking temperature and conveyor speed can be adjusted that assures stable performance. The packaging is good sealed, anti-dust and anti-moisture;
• Generally applicable to PE shrink wrap film;
• SF-13040E adopts importeddoubleair circulationmotors, so that the hot air in the oven canspreadmore evenlyto get a goodshrink effect;
• Chain bar conveying, usingsolidsteel coveredwith durable importedsilicone tube. SF-13040Ecan adddensity bar roller function which specially designed for smallproduct;
• The use of French “Schneider “inverter controls transmission speed which has the function of infinitive speed;
• The chamber lengthis short which can greatly reduce themachinepower; at same time it maintainsgoodpackingeffect;
• For beverage, chemical, building material, food packing with or without paper tray. And wecan also beused forelectrical appliances,auto parts, furniture, flooring and other individual or group sealing andshrink wrap.

LAYOUT:
