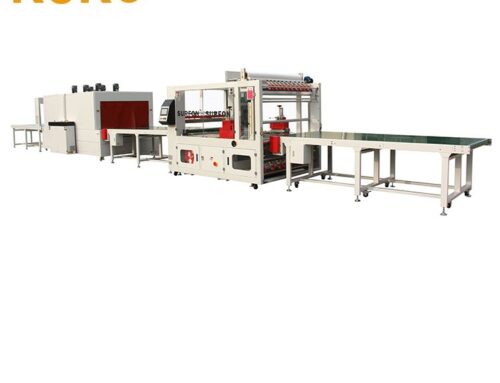

• GH-6030AF Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced high speeddouble-sidesealing technology. It has up & down single film rollers. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing;
• Continuous sealing& cuttingand nolimits of the item length make it particularly suitable forlonger, widerand heavyproducts’fully-closed packaging with PEfilm, such asdoors,furniture, ladders, mattressesand other heavyandoversizedobjects;
• The waste film can be winded automatically for easily clean-up;
• Sidesealing lines can beadjusted to the desired position which based onthe product’s height in order to achieveexcellentsealing strengthresults;
• For 40 ~ 120microns thickness PE shrink film;
• Input & output conveyors and colored film positioning function can be added as per customer demand;
• Humanized touch smart operation interface is convenient for the operator to use;
• Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;
• Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;
• SF-20040E uses imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
• PE high strength film is suitable for long distance transportation and frequent handling that can avoid damage and keep away from moisture.
• Chain bar conveying, using solid steel covered with durable importeds ilicone tube.
• SF-20040E can add density bar roller function which specially designed for smallproduct;
• The use of French “Schneider “inverter controls transmission speed which has the function of infinitive speed;
• The tunnel adopts U type stainless steel 304 heating elements and 5-9cm thickness insulation cotton which can save thepower and prolong the machine life; meanwhile it maintainsgoodpackingeffect;

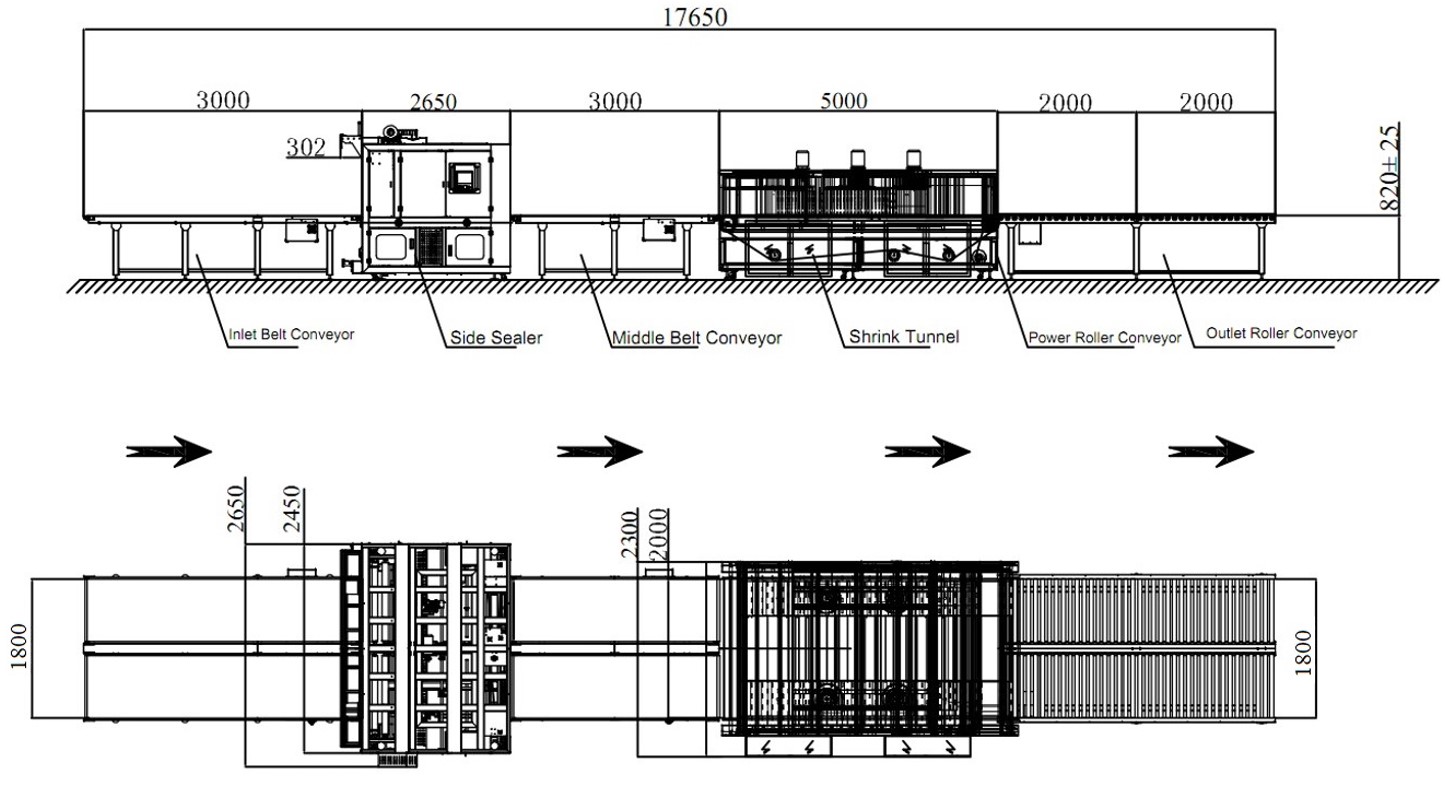

LAYOUT:
