Sleeve Label Shrink Tunnel With Inbuilt Conveyor
SF-1230
This machine is an unique design forall kinds ofbottles and The label will be smooth without deformation after shrinking; It is equipped with the adjustable air vents and built-in Teflon belt conveyor(roller or slat conveyor optional);
Sales Manager: Mrs. Cecilia Pii
Mobile/WhatsApp/Wechat: +86 189 1774 9969
- This machine is an unique design forall kinds ofbottles and The label will be smooth without deformation after shrinking;
- It is equipped with the adjustable air vents and built-in Teflon belt conveyor(roller or slat conveyor optional);
- Imported components which makes sure thestability of the equipment;
- These series of modelsuse hot aircirculationshrinksystems, mainlyforshrinklabelbottle-shaped, jars, cups etc. But also can shrinkthe bottle neck or mouth;
- It is widely used in thebottleorcup bodyof beverages,pharmaceuticals,cosmetics, pesticidesand other industriesglass bottles,plastic bottles,cupsand other containers.

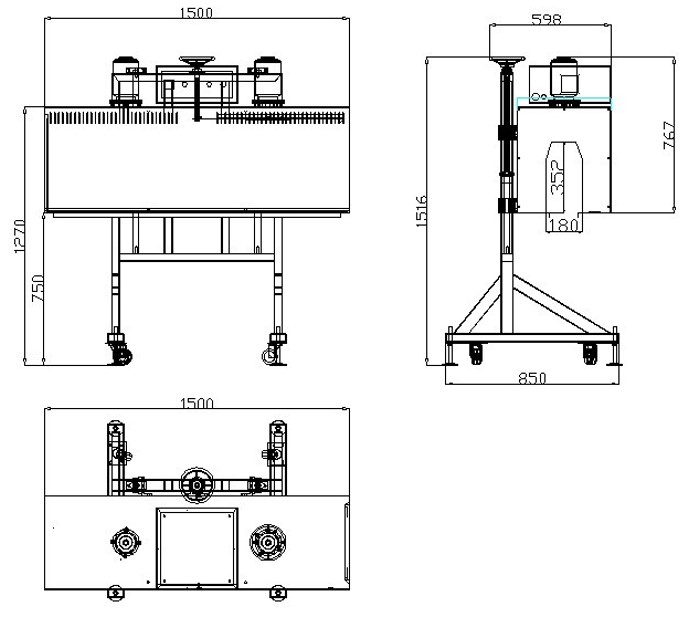

LAYOUT:Ā
Technical Parameters:
ModelĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā | SF-1230 |
Power | 12kw |
Power Supply | AC 380V 3PH 50Hz |
Max Packing Size DiaĆH | 120Ć300mm |
Tunnel Chamber Size LĆWĆH | 1500Ć180Ć352mm |
Table Height | 820Ā±50mm |
Packing Speed | 20-40m/min |
Shrink Film | PET/PVC |
Machine Size LĆWĆH | 2500Ć610Ć1690mm |
Crate Size LĆWĆH | 2550Ć660Ć1840mm |
G./N. Weight | 400/370kgs |
