Online Type Sleeve Label Shrink Tunnel
SF-1230
This machine is an unique design forvariousbottles and The label will be smooth without deformation after shrinking; It can be equipped with the existing production line or automatic sleeve applicator;
Sales Manager: Mrs. Cecilia Pii
Mobile/WhatsApp/Wechat: +86 189 1774 9969
- This machine is an unique design forvariousbottles and The label will be smooth without deformation after shrinking;
- It can be equipped with the existing production line or automatic sleeve applicator;
- Imported components which makes sure thestability of the equipment;
- These series of modelsuse hot aircirculationshrinksystems, mainlyforshrinklabelbottle-shaped, jars, cups etc. But also can shrinkthe bottle neck or mouth;
- It is widely used in thebottleorcup bodyof beverages,pharmaceuticals,cosmetics, pesticidesand other industriesglass bottles,plastic bottles,cupsand other containers.

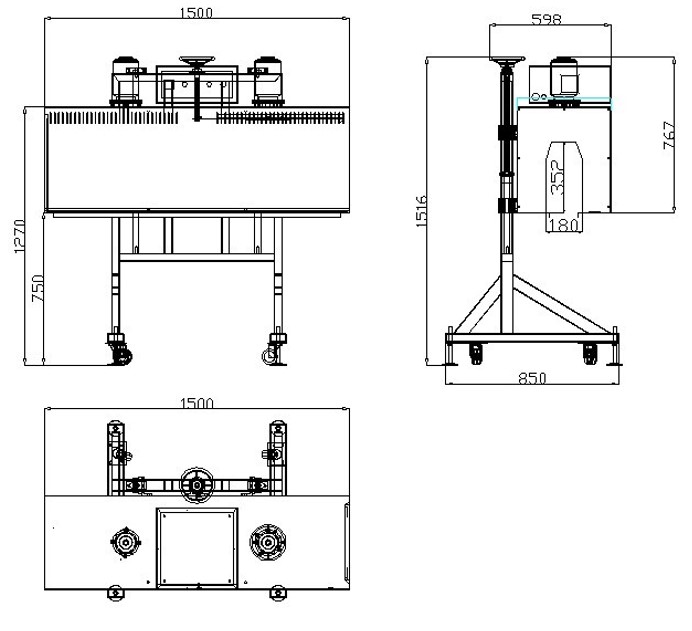

LAYOUT:
Technical Parameters:
ModelĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā | SF-1230 |
Power | 12kw |
Power Supply | AC 220/380V 3PH 50/60Hz |
Max Packing Size DiaĆH | 120Ć300mm |
Tunnel Size LĆWĆH | 1500Ć180Ć352mm |
Packing Speed | 20-40m/min |
Shrink Film | PET/PVC |
Machine Size LĆWĆH | 1500Ć850Ć1516mm |
Crate Size LĆWĆH | 1550Ć900Ć1616mm |
G./N. Weight | 270/240kgs |
